Horizontal Moving Walk

Products Mode: CDRP
Attributes
Type: CDM
Step Width: 600mm/800mm/1000mm
Installation: Indoor/Ourdoor
Rated Speed: 0.5m/s~0.75m/s
Arrangement: Single/Parallel
Load Capacity: 9000 Persons/Hour
Horizontal Steps: 3/4 Steps
Certification: CE
Delivery Time: 25~45 Days
Original of Country: China

Main Information: Made with advanced technology and the best materials, it is a perfect solution for busy airports.

Configuration option


1Installation siteIndoor1.jpg
2Pallet width(mm)800mm/1000mm/1200mm/1400mm
3

Pallet material

Stainless steel/Aluminum
4Pallet demarcation2 sides/4 sides plastic or painted demarcation
5LengthUp to 100m
6Angle0°
7Motor brandJIALI
8Motor power5.5KW/8KW/11KW/15KW
9Start typeBy key
10Gear box brandTorin
11ArrangementSingle/Parallel/Duplex
12Logo on landing plateBrand“User”/Conai


1Handrail colorBlue/Green/Grey/Red/Orange 1.jpg
2VVVFYes/No
3Direction indicatorYes/No
4

Automatic start/stop

Yes/No
5Handrail illuminationYes/No
6Comb lightingYes/No
7Skirting panel lightingYes/No
8Outside claddingPainted steel/SUS430/SUS304
9Fault display storageYes/No

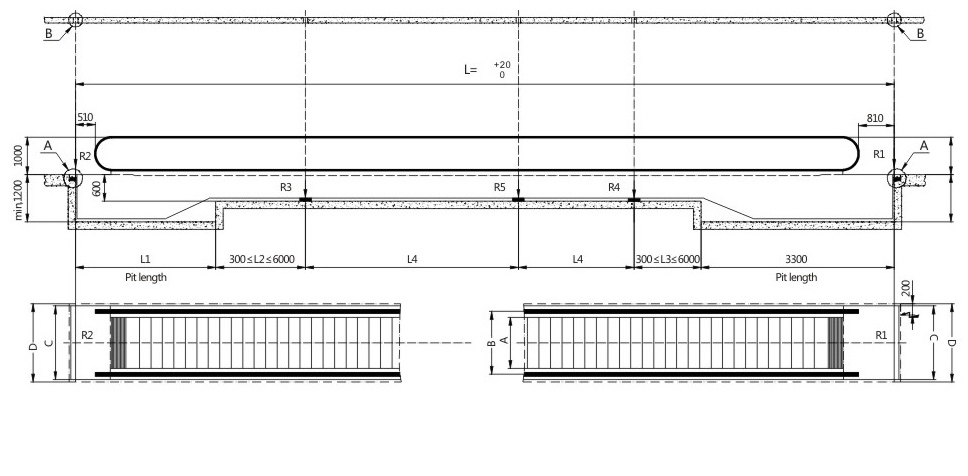

Construction sketch
