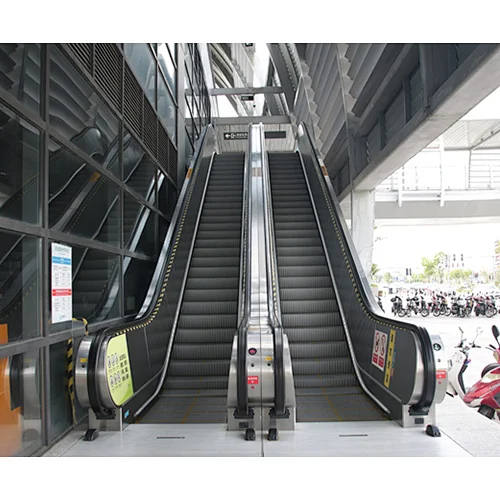

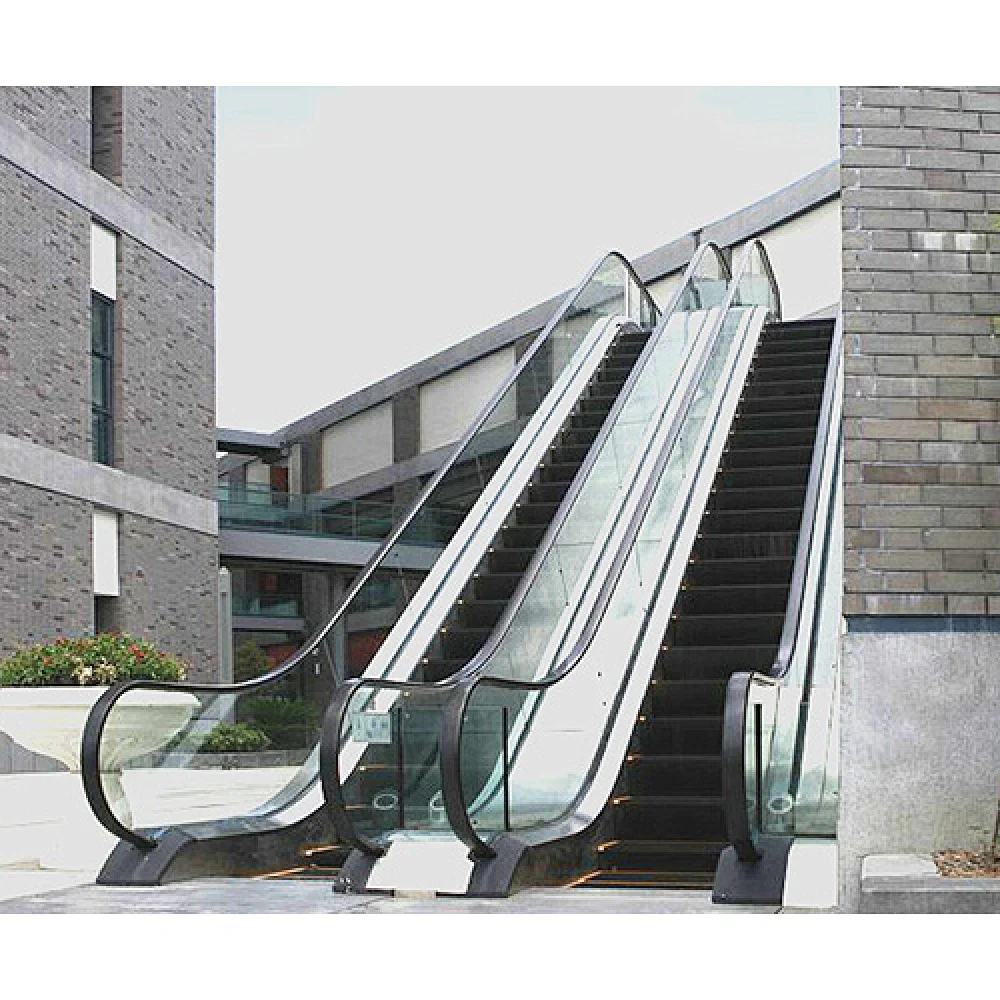

Outdoor Escalator

Products Mode: CDTMO/CDTFO
Attributes
Type: CDM
Step Width: 600mm/800mm/1000mm
Installation: Indoor/Ourdoor
Rated Speed: 0.5m/s~0.75m/s
Arrangement: Single/Parallel
Load Capacity: 9000 Persons/Hour
Horizontal Steps: 3/4 Steps
Certification: CE
Delivery Time: 25~45 Days
Original of Country: China

Main Information: Designed with a powerful, massive structure in order to guarantee the safy and reliable.


Safety Features:
Broken drive-chain contact
Skirting contact
Handrail entrance contact
Broken step-chain contact
Working brake
Phase sensor
Step sag contact
Manitenance locking device
Motor overload and overheat contact
Comb contact
Step gap illumination
Motor speed sensor
Static brush
Static contact
Emergency stop button
Main drive-chain contact
Bell Ring
Over speed sensor
Under speed sensor
Reversal prevent
Short circuit contact
Auto lubrication
Handrail speed sensor
Skirting Brush
Diffuse Photoelectric Device
Anti-skid device

Main specification

1Installation siteIndoor/Outdoor1.jpg
2Step width(mm)600/800/1000/1200/1400
3

Horizontal step

2psc/3psc//4psc
4Rise(mm)≤16m
5Installation length(mm)According to standard drwaing
6Angle30° /35°
7Motor power5.5KW/8KW/11KW/15KW/2*11KW/2*15KW
8Start typeVVVF/Photocell/By key
9Gear box brandSiemens(Flender)Torin
10ArrangementSingle/Parallel(Duplex)
11Step materialStainless steel/Aluminum
12Step demarcation

With 2 sides demarcations
     With 3 sides demarcations
     Yellow Plastic/
     Painted yellow

13Logo on landing plateBrand"User"/Conai


1Comb lighting at both entrance(LED)Yes/No1.jpg
2Skirting lighting LEDYes/No
3Handrail lighting LEDYes/No
4

VVVF/Frequency inverter

Yes/No
5Outside claddingNo/Painted steel/S.S304/S.S430/S.S316
6Cladding thickenss1.0mm/1.2mm/1.5mm/2.0mm

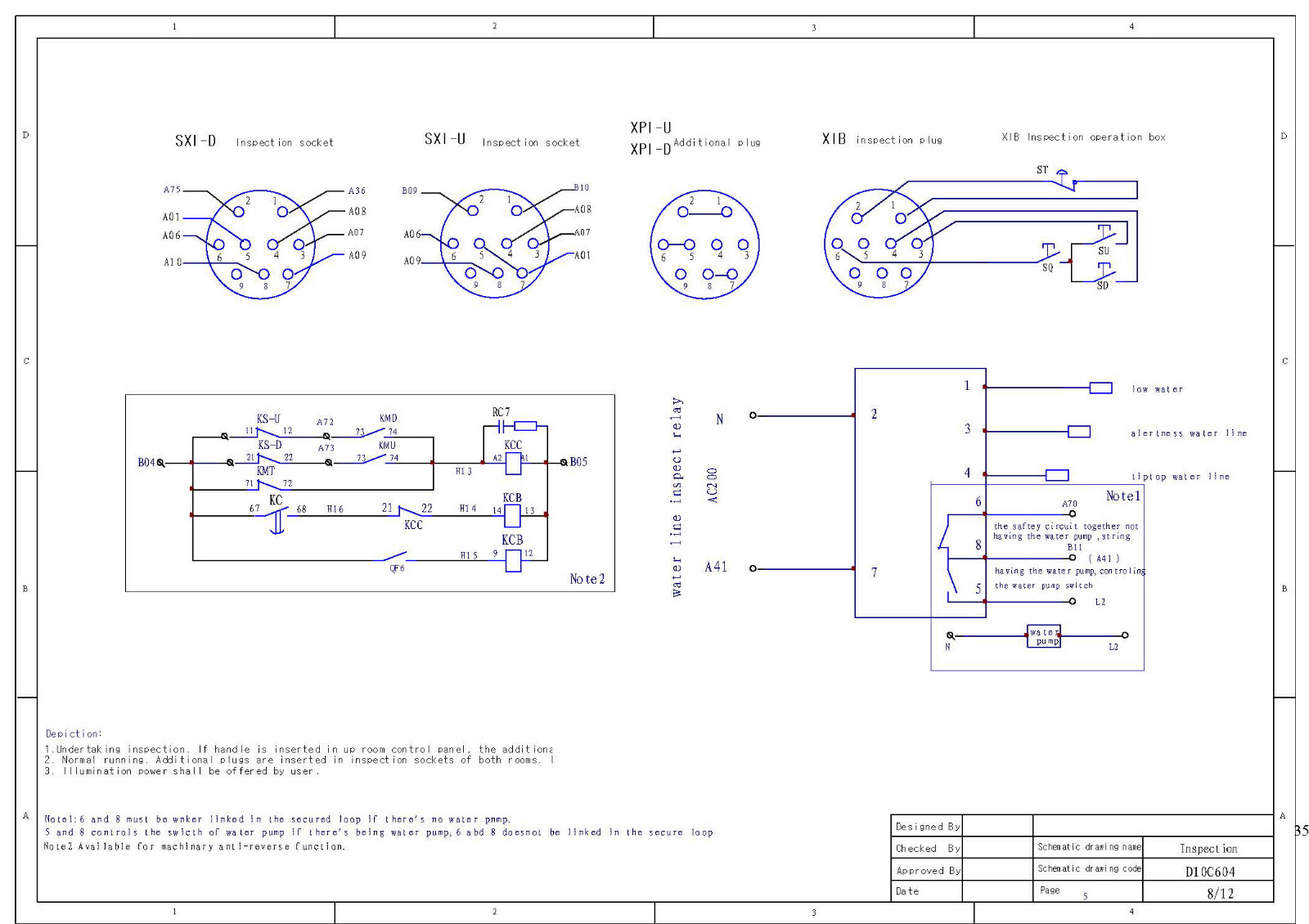

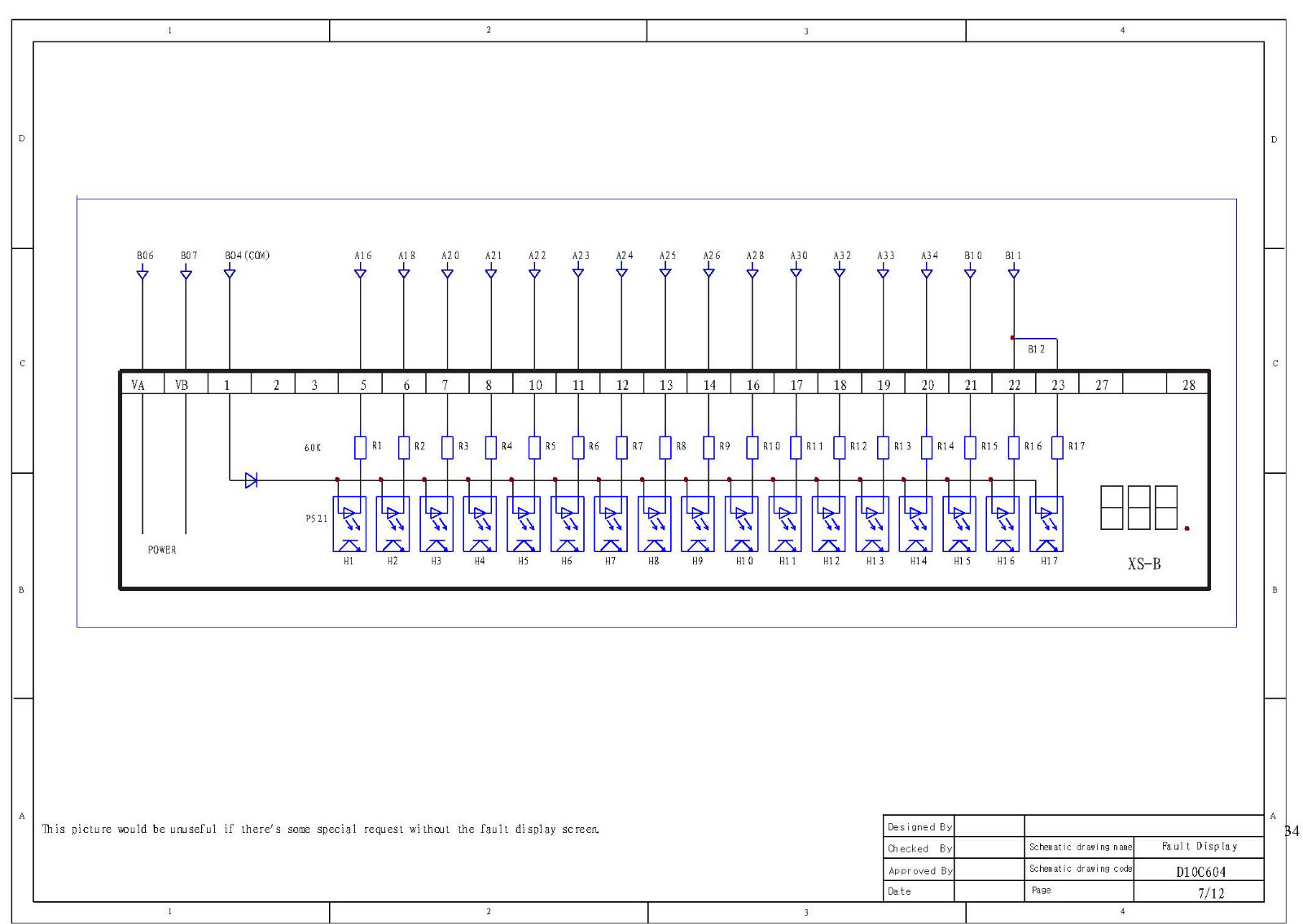

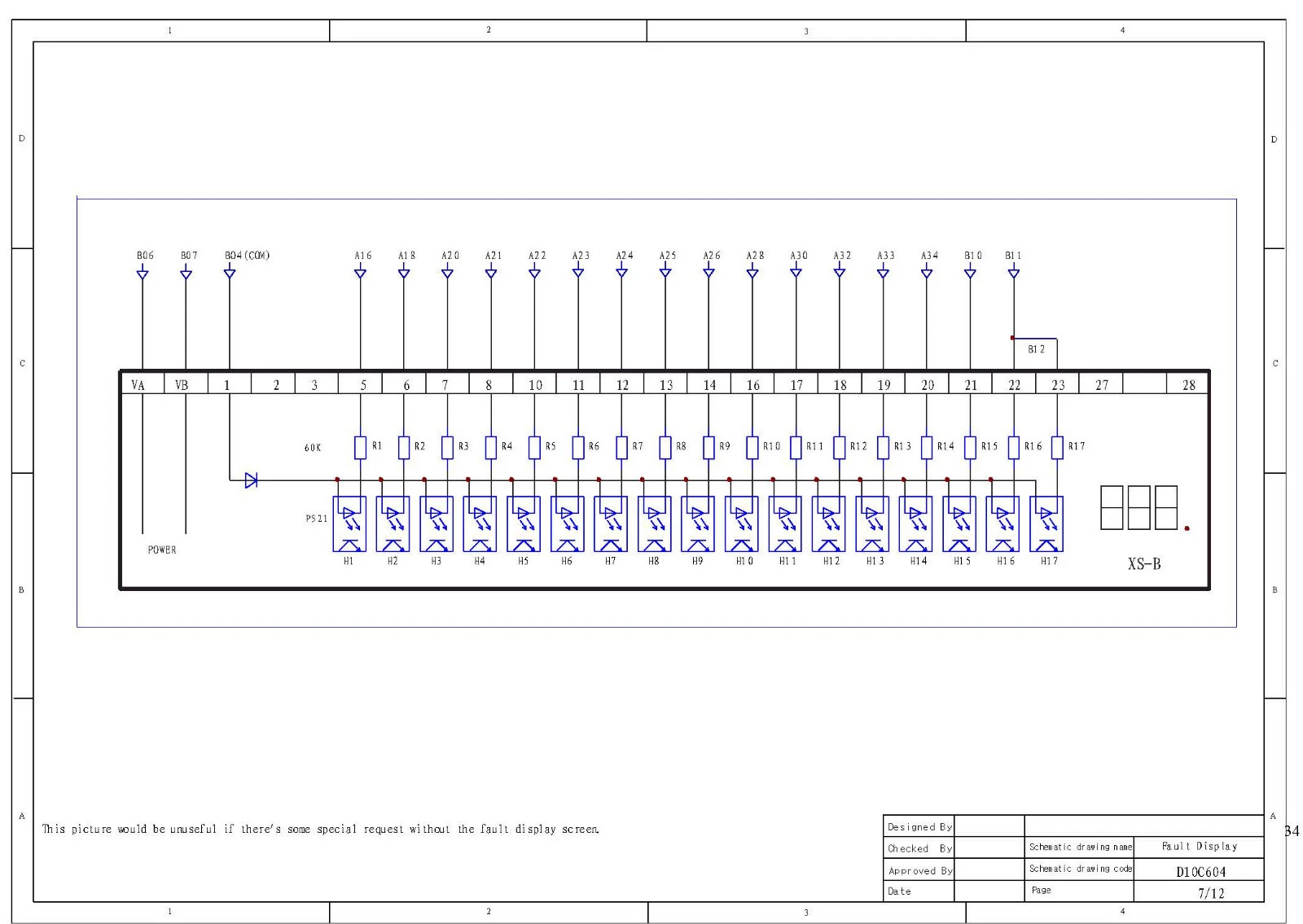

Electrical schematic
