6-16 Person Observation Lift Passenger Elevator Sightseeing Glass Elevator Lift
CLEP4
FOB
Quantity

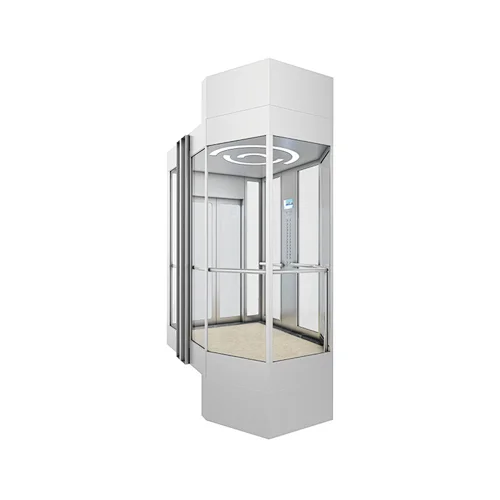

6-16 Person Observation Lift Passenger Elevator Sightseeing Glass Elevator Lift
CONAI panorama lift series apply the open and deluxe decoration style. It is for super-strong visual aesthetics, the elaborate material, the consummate manufacture craft technology. The excellent sight-seeing lift not only harmoniously combines with your high-grade building, but also adds glamour to each other.

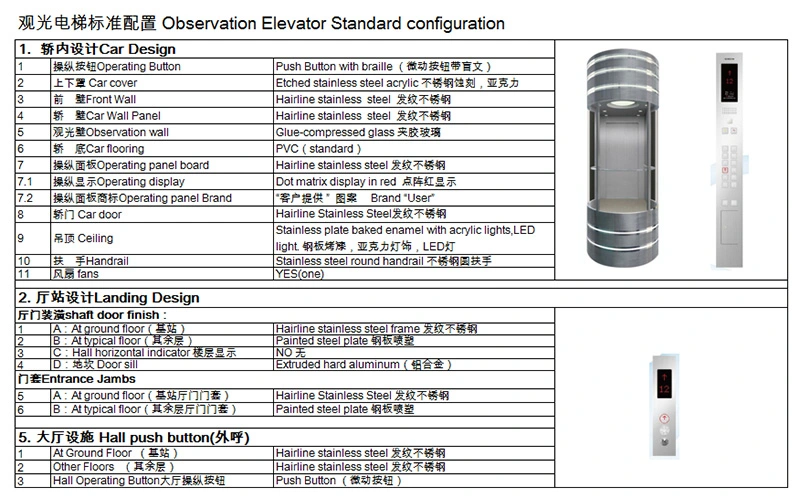

Observation Elevator Configuration Table
Note: Regarding specific data, please refer to the contract.

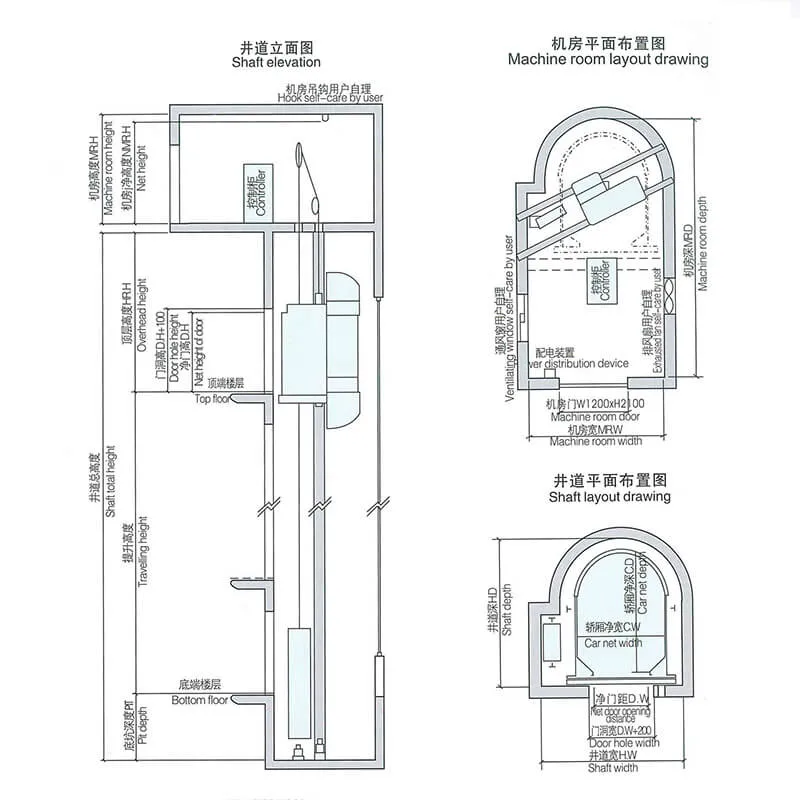

Shaft Layout
| NO. | Rated capa city (KG/Person) | Speed (m/s) | Net size of car | Net door size | Net size hoistway | Pit depth | Overhead height | Machine room size | Opening mode |
| 1 | 630(8) | 1.0/1.5/1.75 | 1200*1600*2400 | 800*2100 | 2300*2200 | 1800 | 4800 | 3000*3200*2200 | center opening |
| 2 | 800(10) | 1.0/1.5/1.75 | 1400*1600*2400 | 800*2100 | 2400*2200 | 2000 | 5000 | 3000*3500*2400 | |
| 3 | 1000(13) | 1.0/1.5/1.75 | 1400*1800*2400 | 900*2100 | 2450*2400 | 2000 | 5000 | 3000*3500*2400 | |
| 4 | 1250(16) | 1.0/1.5/1.75 | 1500*2000*2400 | 1000*2100 | 2600*2650 | 2000 | 5000 | 3500*4000*2400 | |
| 5 | 1600(21) | 1.0/1.5/1.75 | 1600*2300*2400 | 1100*2100 | 2700*2950 | 2300 | 5000 | 3500*4000*2400 |
Note: Regarding specific size, please take the construction layout drawing while signing the construct as criterion.

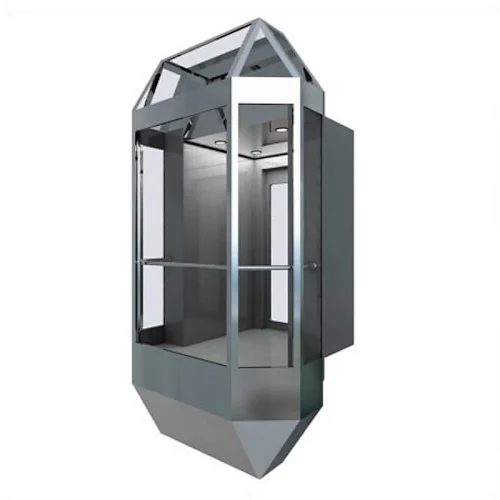

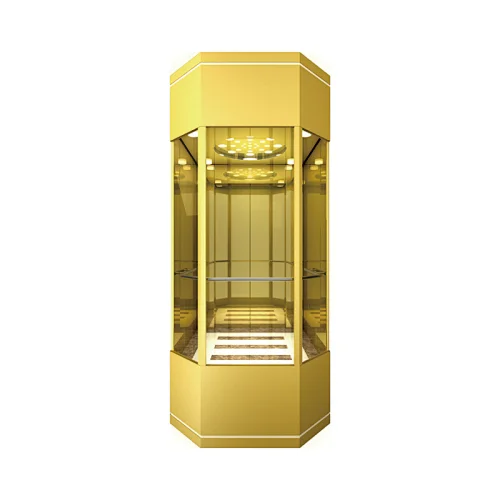

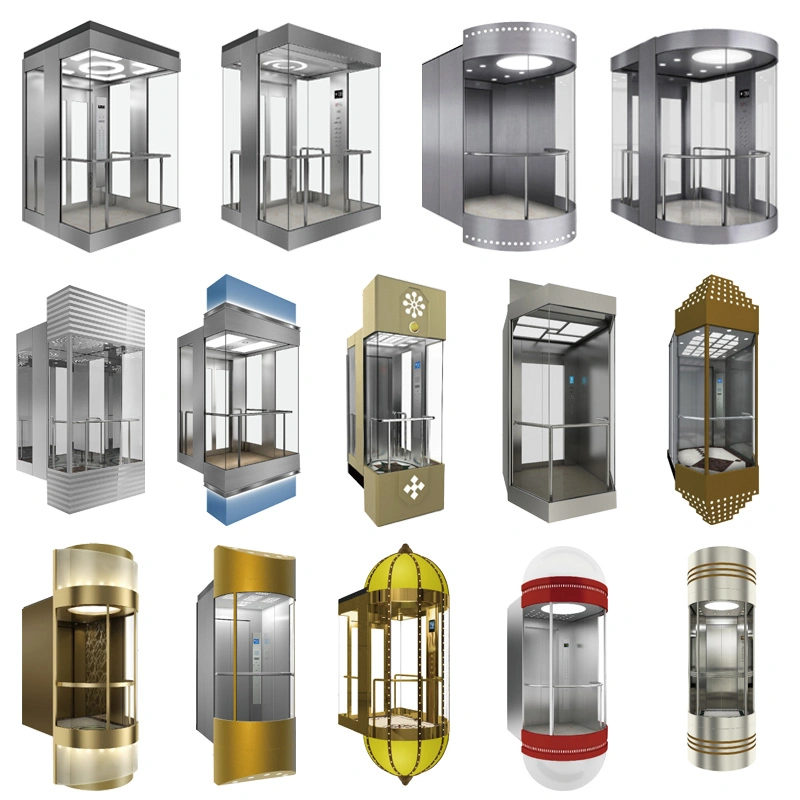

Observation Lift Carbinet
For more types, please contact us.
