Customized Conai Diamane Passenger Lift Elevator
price

US $8000.00 - US $12000.00 / piece

CLPD
FOB
1 piece
20000piece / Year
15Day
Quantity

Customized Conai Diamane Passenger Lift Elevator

We know very well about the loss reduction and energy-saving, environmental protection ideas for machine roomless residential lifts. With great improving on design freedom of motion & full expressing on green humanities. We endeavor to save the building area, enhance the freedom in design, full display a green and human concept. Compared with same loading level geared lift, Machine roomless residential lifts can save 25% of the electricity 10% of the building area. Machine roomless residential lift breaks through the premise that every lift needs to have a machine room. Residential lifts offers an infinitely inventive possibility for the limited space in the modern constructions.

Diamane Elevator Configuration Table

Main FeatureOption FunctionStandard Function
1MotorTONGRUNRemote Control√Light Curtain Protection
2GuideSolid/SolidFireproof Door E120×Overload Stop
3Car Door SystemFLYINGEmergency Power Device√Inspection Operation
4Car SystemSPECIFICATION（2万）Marble Floor√Troubleshooting
5Landing Door SystemSPECIFICATION（1万）Handrail√Auto-landing With Fault
6Stainless Steel MaterialSUS304Floor Weigh√Door Close Repeat
7Safety GearSAIFUTEWirerope Weigh√Top/Bottom Limit And Final Limit Protection
8Speed GovernorSHENLINGLanding Light√Down Running Protection
9BufferAODEPUCard、Specify Floor×Up Running Protection
10Guide ShoeDONGFANGInstallation×Safety Circuit Protection
11Switch BrandQIMENGDoor Interlock Protection
12Photoelectric BrandWOQIMain Contactor Protection
13WireropeJINDINGBrake Detecting Protection
14Light CurtainSAIFUTEEmergency Lighting
15Emergency Electric Operation
165-Way Intercom
17Alarm Bell
18Automatic Rescue Device
19
20

Note: Regarding specific data, please refer to the contract.

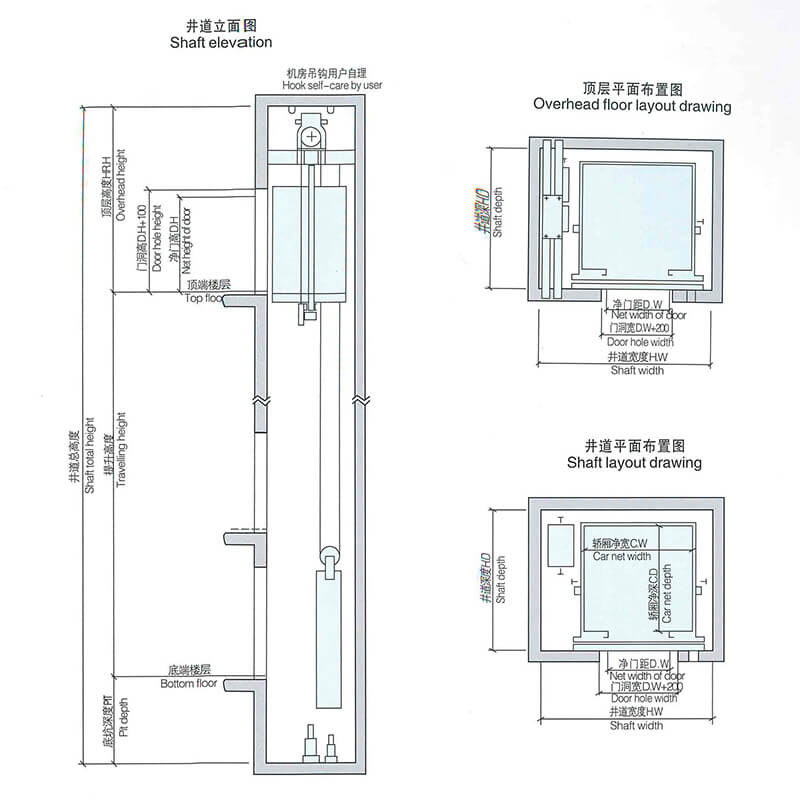

Shaft Layout

NO.额定载重（KG/人） Rated capa city速度（m/s） Speed轿厢尺寸（宽*深*高） Net size of car净门尺寸 （宽*高） Net door size井道净尺寸（宽*深） Net size hoistway地坑深度 Pit depth顶层高度 Overhead height机房净尺寸（宽*深*高） Machine room size开门方式 Opening mode
1450(6)1.01200*1100*2400800*21001800*1800140042001800*1800*2200中分center opening
2630(8)1.01400*1200*2400800*21002000*1850140042002000*1850*2200
1.5/1.7517004500
3800(10)1.01400*1400*2400800*21002100*2050140042002100*2050*2400
1.5/1.7517004500
2.020004800
41000(13)1.01600*1500*2400900*21002200*2150140042002200*2150*2400
1.5/1.7517004500
2.020004800
2.52300*2300250052002300*2300*2400
3.028005800
51250(16)1.01800*1500*24001000*21002400*2200140042002400*2200*2400
1.5/1.7517004500
2.020004800
2.52500*2400250052002500*2400*2400
3.028005800
61600(21)1.02000*1700*24001100*21002600*2450140042002600*2450*2400
1.5/1.7517004500
2.020005000
2.52700*2600250052002700*2600*2400
3.028005800

Note: Regarding specific size, please take the construction layout drawing while signing the construct as criterion.

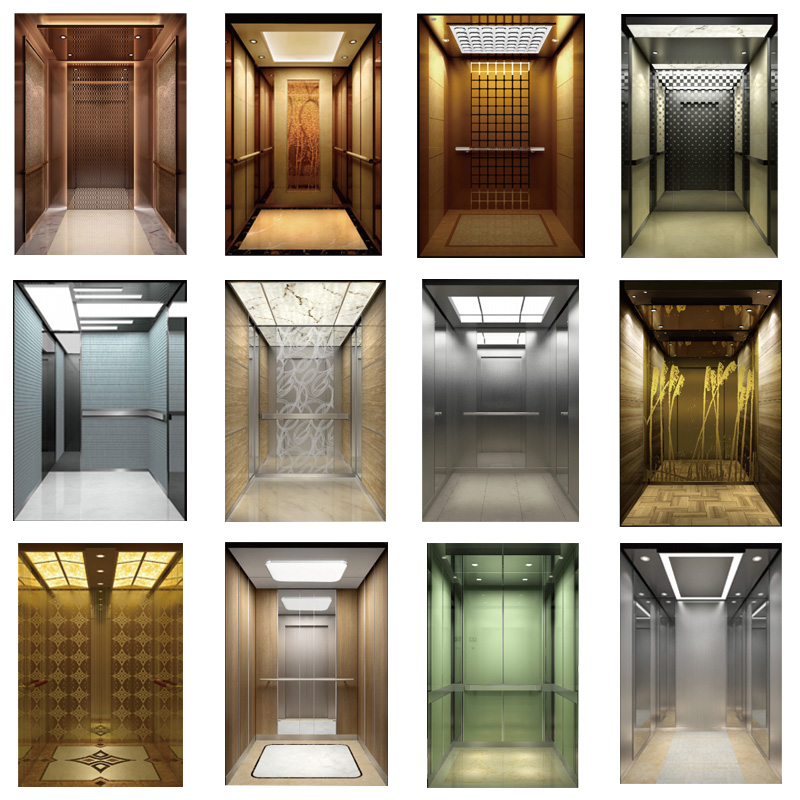

Passenger elevator carbinet

For more types, please contact us.
