Customized Diamane Commercial Elevator Lift Passenger Elevator
CLPD-1
FOB
Quantity

Customized Diamane Commercial Elevator Lift Passenger Elevator


We know very well about the loss reduction and energy-saving, environmental protection ideas for machine roomless residential lifts. With great improving on design freedom of motion & full expressing on green humanities. We endeavor to save the building area, enhance the freedom in design, full display a green and human concept. Compared with same loading level geared lift, Machine roomless residential lifts can save 25% of the electricity 10% of the building area. Machine roomless residential lift breaks through the premise that every lift needs to have a machine room. Residential lifts offers an infinitely inventive possibility for the limited space in the modern constructions.

Diamane Elevator Configuration Table

Main FeatureOption FunctionStandard Function
1MotorTONGRUNRemote ControlLight Curtain Protection
2GuideSolid/SolidFireproof Door E120×Overload Stop
3Car Door SystemFLYINGEmergency Power DeviceInspection Operation
4Car SystemSPECIFICATION(2)Marble FloorTroubleshooting
5Landing Door SystemSPECIFICATION(1)HandrailAuto-landing With Fault
6Stainless Steel MaterialSUS304Floor WeighDoor Close Repeat
7Safety GearSAIFUTEWirerope WeighTop/Bottom Limit And Final Limit Protection
8Speed GovernorSHENLINGLanding LightDown Running Protection
9BufferAODEPUCard,Specify Floor×Up Running Protection
10Guide ShoeDONGFANGInstallation×Safety Circuit Protection
11Switch BrandQIMENGDoor Interlock Protection
12Photoelectric BrandWOQIMain Contactor Protection
13WireropeJINDINGBrake Detecting Protection
14Light CurtainSAIFUTEEmergency Lighting
15Emergency Electric Operation
165-Way Intercom
17Alarm Bell
18Automatic Rescue Device
19
20

Note: Regarding specific data, please refer to the contract .

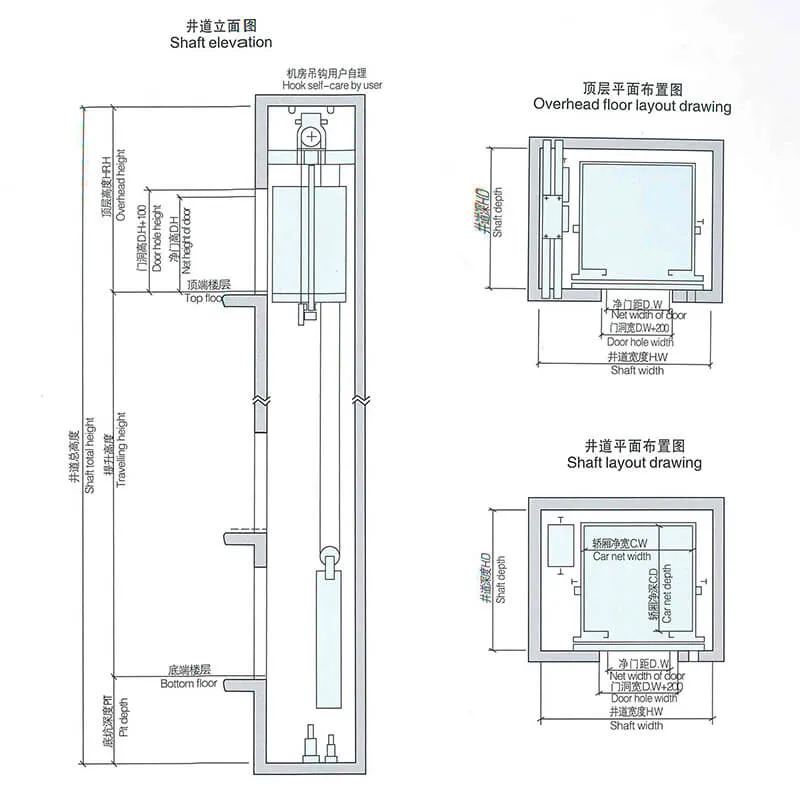

Shaft Layout

NO.(KG/Person) Rated capa citySpeed(m/s)Net size of carNet door sizeNet size hoistwayPit depthOverhead heightOpening mode
1320(4)0.63/1.01100*900*2300700*20002050*140015004100center opening
2400(5)0.63/1.01100*1100*2300700*20002050*150015004100
3450(6)0.63/1.01100*1200*2300700&20002100*160015004100
4630(8)1.01200*1400*2400800*21002200*180015004200
1.5/1.7517004500
5800(10)1.01400*1400*2400800*21002400*180015004200
1.5/1.7517004500
61000(13)1.01600*1500*2400900*21002600*190015004200
1.5/1.7517004500
71250(16)1.01800*1500*24001000*21002800*190017004500
1.5/1.7519004800
81600(21)1.02000*1700*24001100*21003000*200017004800
1.5/1.7519005000


Note: Regarding specific size, please take the construction layout drawing while signing the construct as criterion.

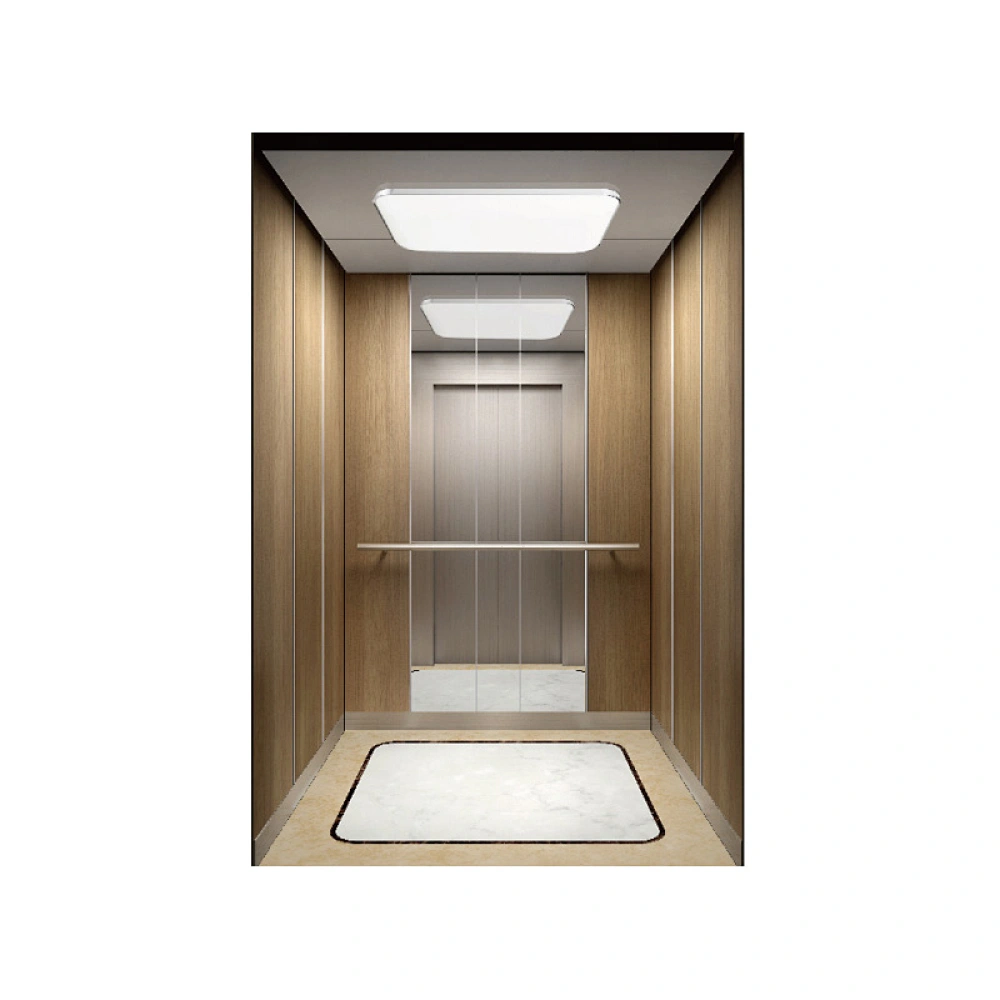

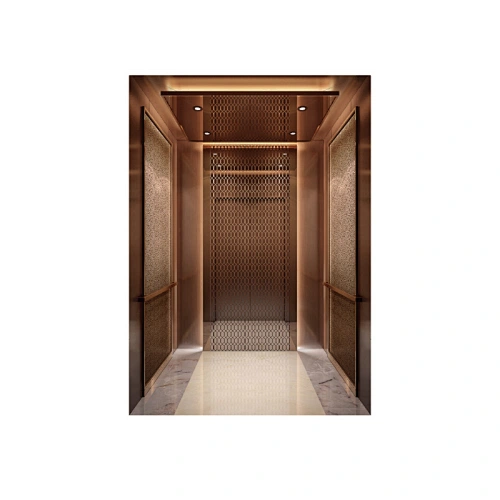

Passenger elevator carbinet

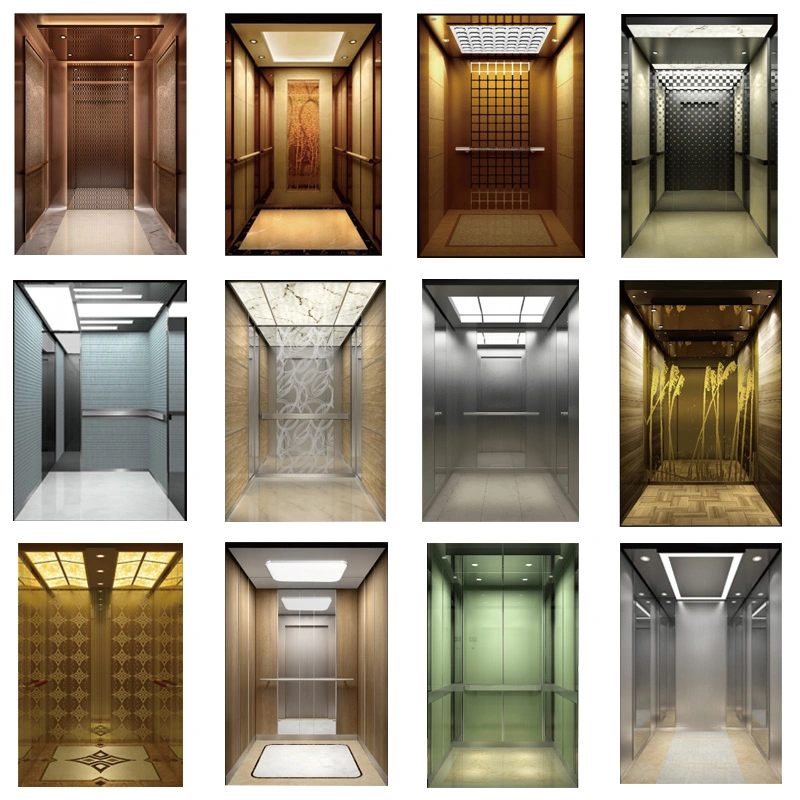

For more types, please contact us.
