Observation elevator standard configuration
| 1.Car Design | ||
1 | Operating button | Push button with braille |
2 | Car cover | Etched stainless steel acrylic |
3 | Front wall | Hairline stainless steel |
4 | Car wall panel | Hairline stainless steel |
5 | Observation wall | Glue-compressed glass |
| 6 | Car flooring | PVC(standard) |
| 7 | Operating panel brand | Hairline stainless steel |
| 7.1 | Operating display | Dot matrix display in red |
| 7.2 | Operating panel brand | Brand"User" |
| 8 | Car door | Hairline stainless steel |
| 9 | Ceiling | Stainless plate baked enamel with acrylic lights,LED light |
| 10 | Handrail | Stainless steel round handrail |
11 | Fans | YES(one) |
| 2.Landing Design | ||
Shaft door finish: | ||
1 | A: At ground floor | Hairline stainless steel frame |
| 2 | B: At typical floor | Painted steel plate |
| 3 | C: Hall horizontal indicator | NO |
| 4 | D: Door sill | Extruded hard aluminum |
| Entrance jambs | ||
5 | A: At ground floor | Hairlin stainless steel |
6 | B: At typical floor | Painted steel plate |
3.Hall push button | ||
| 1 | At ground floor | Hairline Stainless Steel |
| 2 | Other floors | Hairline Stainless Steel |
| 2 | Hall Operating button | Push button |
| NO | Rated capacity(kg.per.) | Speed(m/s) | Net size of car(mm) | Net door size(mm) | Net size hoisway(mm) |
| 1 | 630(8) | 1.0/1.5/1.75 | 1200*1600*2400 | 800*2100 | 2300*2200 |
| 2 | 800(10) | 1.0/1.5/1.75 | 1400*1600*2400 | 800*2100 | 2400*2200 |
| 3 | 1000(13) | 1.0/1.5/1.75 | 1400*1800*2400 | 900*2100 | 2450*2400 |
| 4 | 1250(16) | 1.0/1.5/1.75 | 1500*2000*2400 | 1000*2100 | 2600*2650 |
| 5 | 1600(21) | 1.0/1.5/1.75 | 1600*2300*2400 | 1100*2100 | 2700*2950 |
Q1: What is an Observation Elevator?

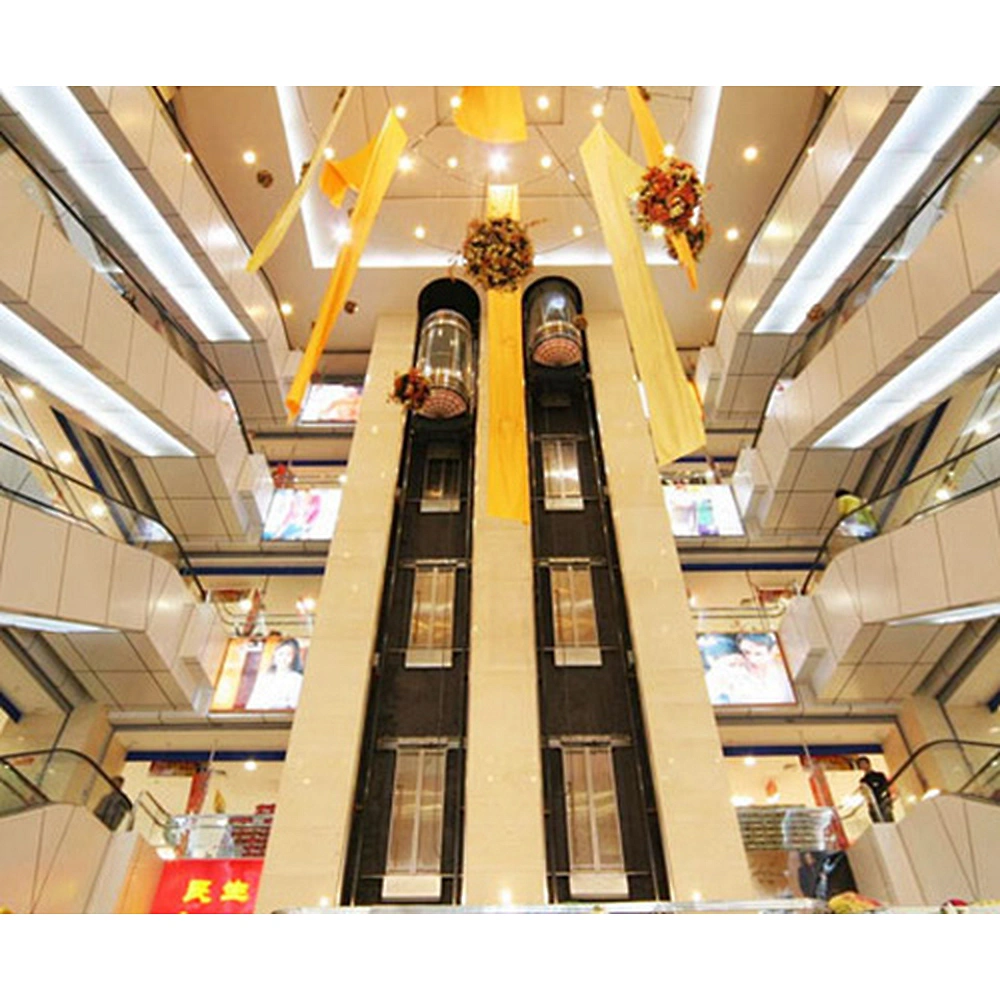

A: An Observation Elevator (also called a Panoramic Glass Elevator or Scenic Lift) is a transparent elevator designed to provide passengers with a 360° unobstructed view while ascending or descending. It is widely used in luxury hotels, shopping malls, and high-end residential buildings to enhance architectural aesthetics and user experience.
Q2: Why Choose a Glass Observation Elevator for Commercial Buildings?
A: A Glass Observation Elevator not only serves as a functional transport solution but also becomes a visual centerpiece for modern architecture. Its transparent design attracts visitors, improves space utilization, and adds a futuristic touch to hotels, airports, and retail centers. Additionally, it can be customized with energy-efficient glass to reduce cooling costs.
Q3: How Does a China-Made Observation Elevator Ensure Safety?
A: High-quality Observation Elevators from China comply with international standards (CE, EN81) and feature:
Reinforced tempered glass for impact resistance.
Emergency backup power to prevent stoppages.
Smooth braking systems for passenger comfort.
Chinese manufacturers also offer OEM/ODM services, allowing customized safety configurations.
