Outdoor Indoor Vertical Wheelchair Platform Lift Customized Disabled Elevator
CLWL-1
FOB
Quantity

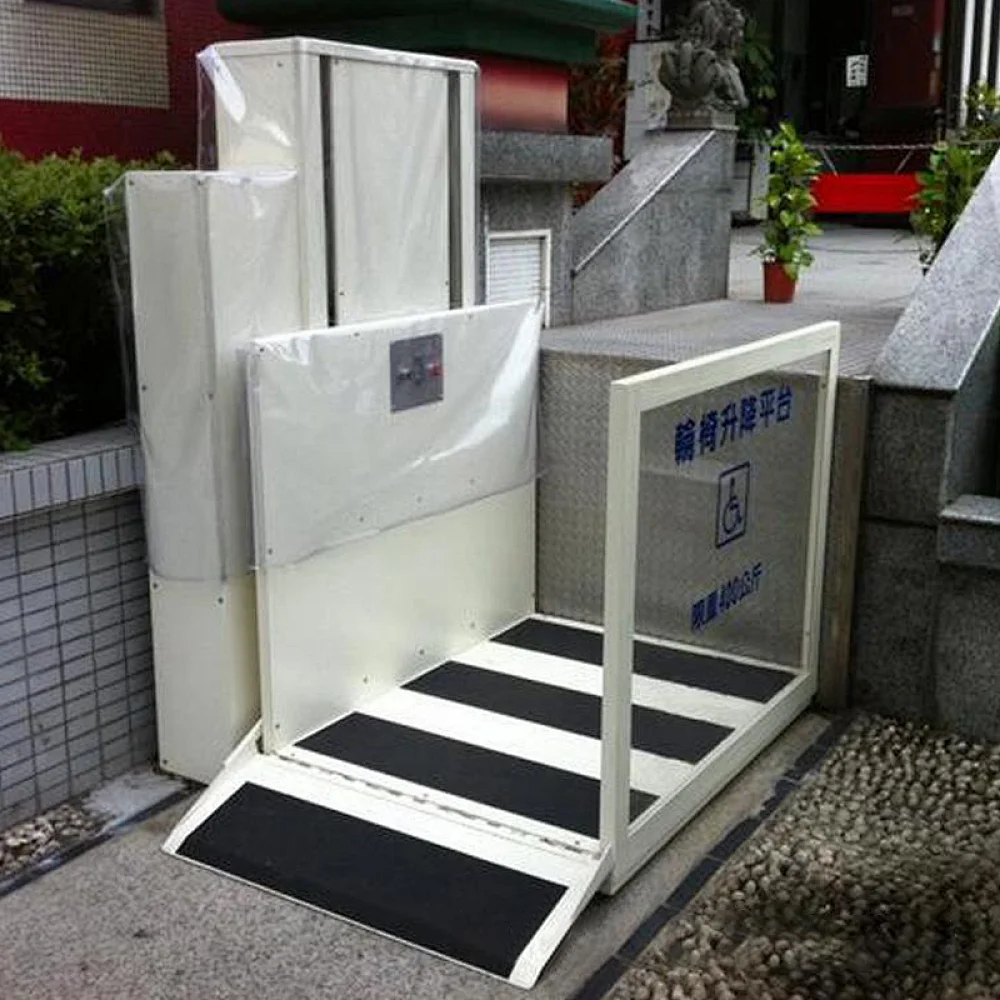

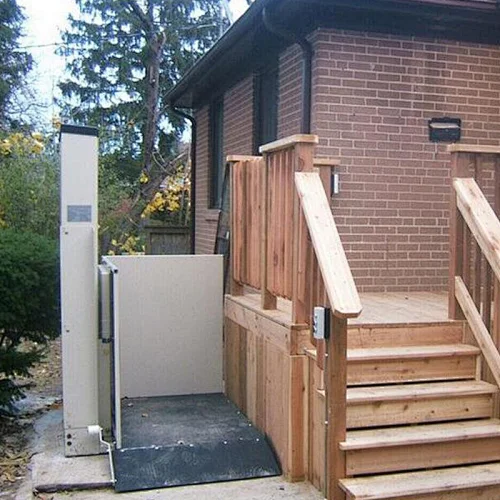

Outdoor Indoor Vertical Wheelchair Platform Lift Customized Disabled Elevator

Wheelchair lift platform as a device carrier, a collection of a variety of user-friendly design. Has a full range of early warning protection.
It is a good solution to the elderly and disabled people up and down the stairs inconvenient difficulties.


Wheelchair Lift Technical parameters

Load300kgWeight≈300kg
Operating surface dimensions2200mm*1200mm *1000mmPlatform size1800mm*900mm(L*W)
Dimensions of side flap885mm*260mm(L*W)Side flap can be turned angle'-30°~ +60°
Guardrail height945mmThe height of the button1088mm
Device thicknessIncluding columns 450mm±3mmPlatform folding thickness323mm±1mm
VoltageHighest Safety voltage DC 25.2VBattery capacity24V10AH
Usage frequency<40/sCharging voltageDC 25.6VSafety voltage
Button response<0.2SKey delay>0.5s


Wheelchair Lift Type

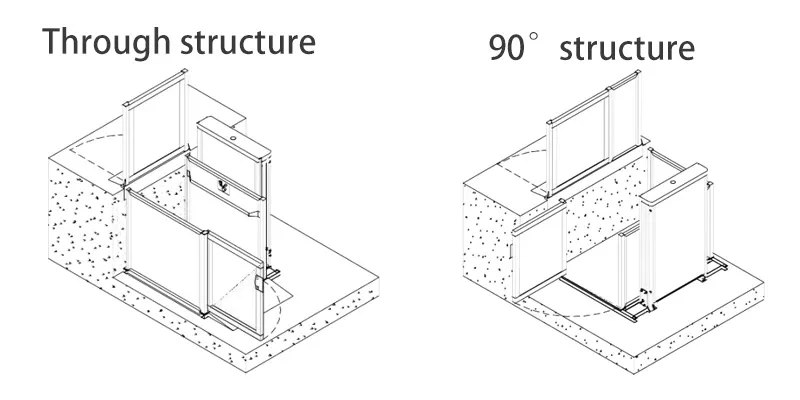

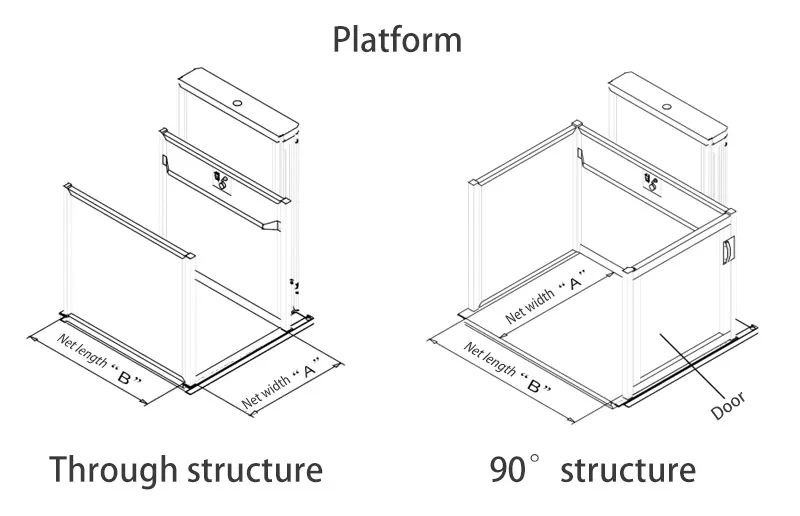

Through Structure Parameters

Platform sizeProjection widthProjection lengthPit widthPit lengthNet widthNet depth
Standard1255mm1296mm1319mm1334mm914mm1242mm
Medium1255mm1448mm1319mm1493mm914mm1394mm
Large1440mm1600mm1508mm1645mm1100mm1546mm

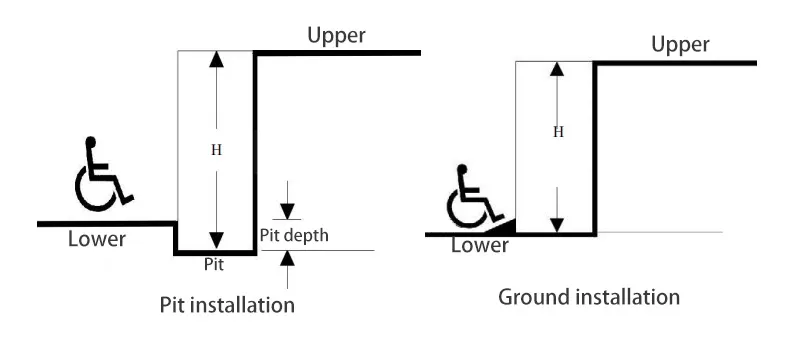

90° Structure Parameters

Platform sizeProjection widthProjection lengthPit widthPit lengthNet widthNet depth
Large1440mm1600mm1456mm1683mm1125mm1519mm


Note:More details please contact us.

Main features
1.It is fully automatic folding system, any deformation process without human intervention.
2.All intelligent form to determine the platform in any case can confirm their own state, and deformation
3.anti-collision function, the fence can automatically detect the displacement and suspend the operation of the equipment to ensure passenger safety.
4.with battery power, to ensure that the equipment in the absence of external power can also be folded under the operation.
5.can be external control automatic plate, in the case of no power can be any deformation.
6.A variety of operating modes can be switched, for different places can be set for different operations.
7.With emergency stop button, press the emergency stop button in the running state after the device immediately brake.
8.With the help of the alarm button, any time you can call the alarm call operator.
9.All instructions are wirelessly transmitted, external without wiring.
10.with full-function operation instructions LCD screen.
