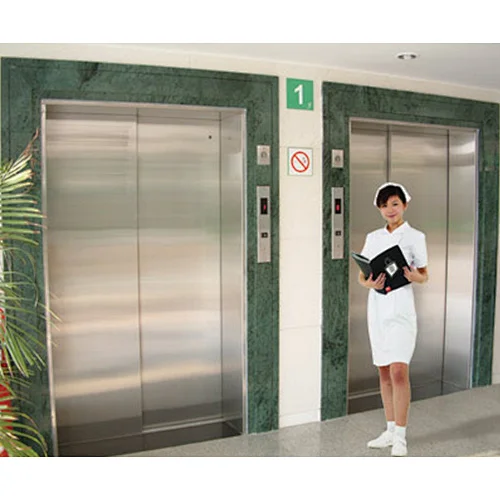

Bed Elevator
CNDD-020
FOB
Quantity

Main Information: Multiple safety design, effectively reduce the probability of accident, make constant patient safety
lift construction material hoist construction lift ski lift construction lift construction details gondola lift construction

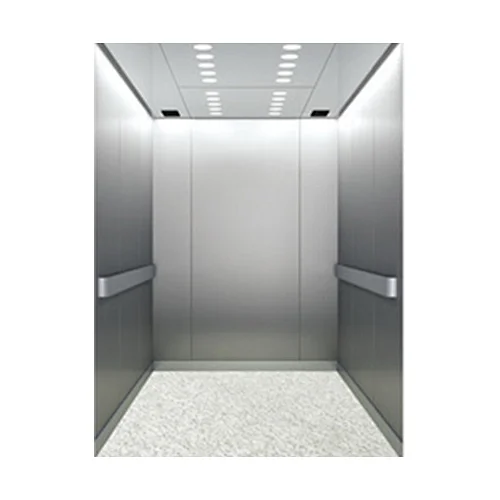

1.Car Design

1

Operating button

Push Button with braille

2

Front wall

Hairline stainless steel

3

Car wall panel

Hairline stainless steel

4

Car flooring

PVC Plastic floor PVC

5

Operating panel board

Hairline stainless steel

5.1

Operating display

Dot matrix display in red

5.2

Operating panel brand

Brand"User"

6

Car door

Hairline stainless steel

7

Ceiling

Painted steel plate,LED Lighting

8

Handrail

Stainless steel tube

9

Mirror

NO

10

Fans

YES(one)

2.Landing Design

Shaft door finish:

1

A: At ground floor

Hairline stainless steel

2

B: At typical floor

Painted steel plate

3

C: Hall horizontal indicator

NO

4

D: Door sill

Extruded hard aluminum

Entrance jambs

5

A: At ground floor

Hairline stainless steel (narrow type)

6

B: At typical floor

Painted steel plate  (narrow type)

3.Hall push button

1At ground floorHairline stainless steel
2Other floorsHairline stainless steel

3

Hall operating button

Push button

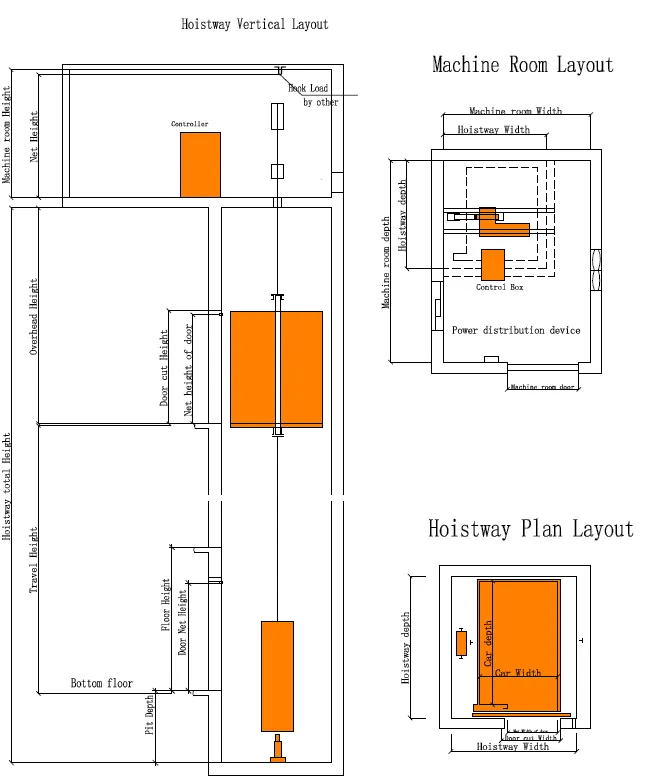

NO.Rated capacity(KG/PER.)Speed(m/s)Net size of car(mm)Net door size(mm)Net size hoisway(mm)
11600(21)1.0
     1.5/1.75
1400*2400*24001000*21002400*2800
1.0
   1.5/1.75
110*21002300*3000
