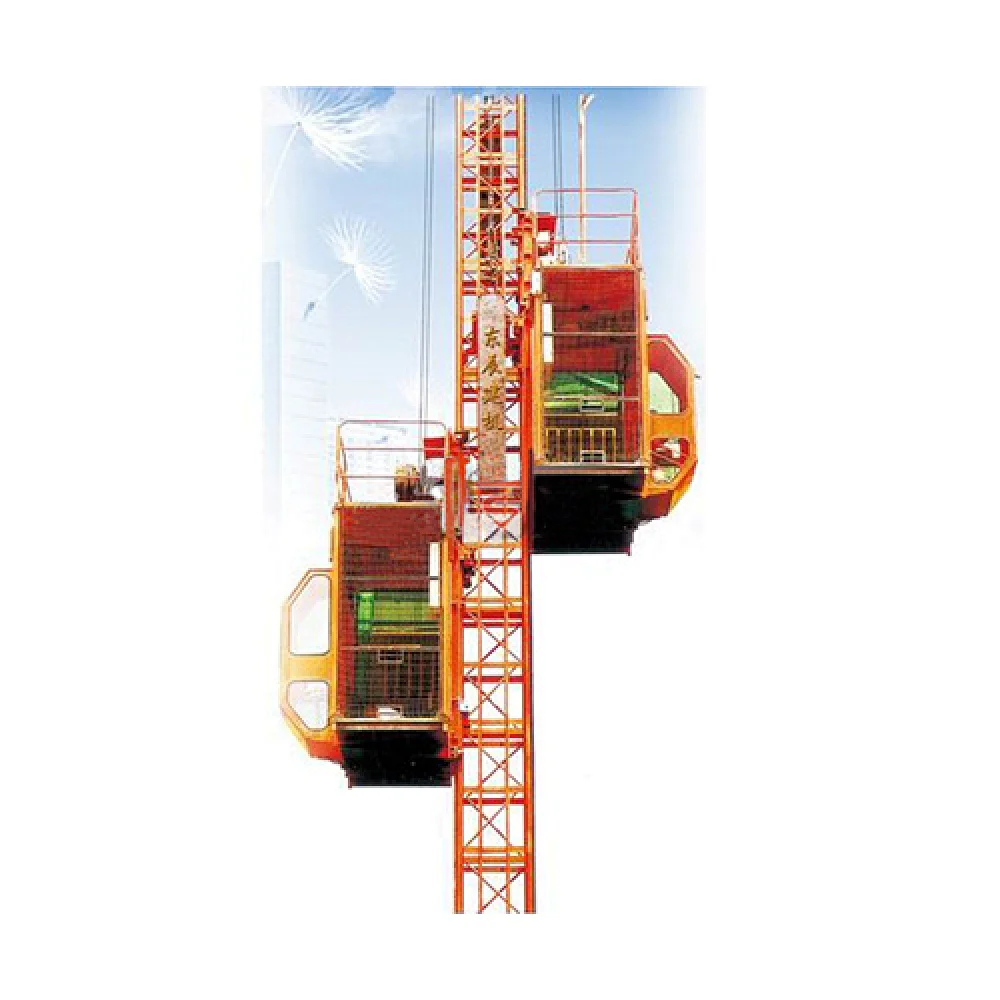

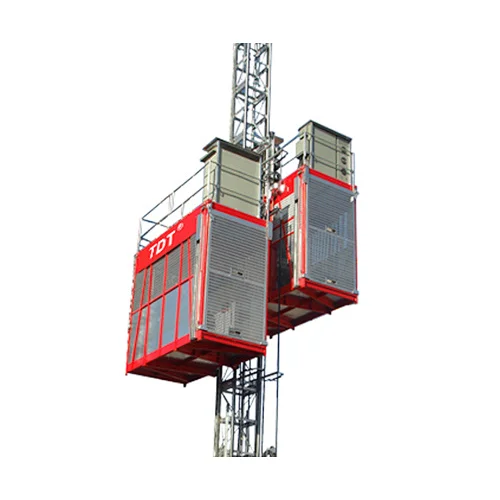

Main Information: Conai Construction Elevator with big room and capacity help to transport
1.Car Design | ||
1 | Front wall | Hairline stainless steel+barbed wire |
2 | Car wall panel | Hairline stainless steel+barbed wire |
3 | Car flooring | Checked steel plate |
4 | Car Ceiling | Hairline stainless steel |
5 | Car door | Hairline stainless steel+barbed wire |
6 | Light | LED |
2.Landing Design | ||
1 | A: At ground floor | None |
2 | B: At typical floor | None |
Entrance jambs | ||
3 | A: At ground floor | None |
4 | B: At typical floor | None |
3.Hall push button | ||
1 | At ground floor | Push button |
2 | Other floors | Push button |
NO. | Rated capacity | Speed(m/s) | Size of car(mm) | Net door size(mm) |
1 | 2000 | 0.5 | 2200*1500*2500 | ≤1000 |
2 | 3000 | 0.5 | 2700*1600*2500 | ≤1200 |
3 | 5000 | 0.5 | 3600*2000*2500 | ≤1600 |
4 | 6000 | 0.5 | 4000*2200*2500 | ≤1600 |
5 | 8000 | 0.5 | 4500*3000*2500 | ≤1800 |
