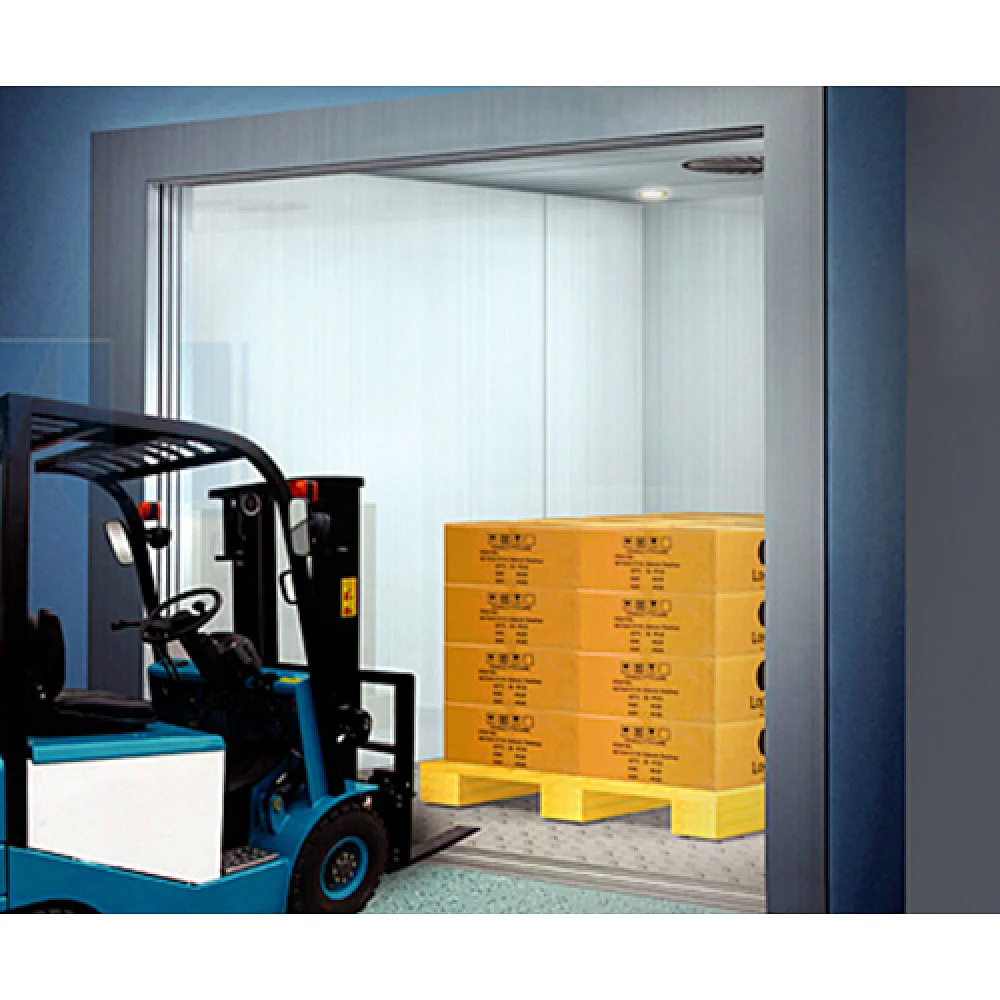

Freight Elevator
CNDD-050
FOB
Quantity
Main Information: More refined technology, strong power, large space, better service, more choice!
elevator freight elevator,freight elevator,motor freight elevator

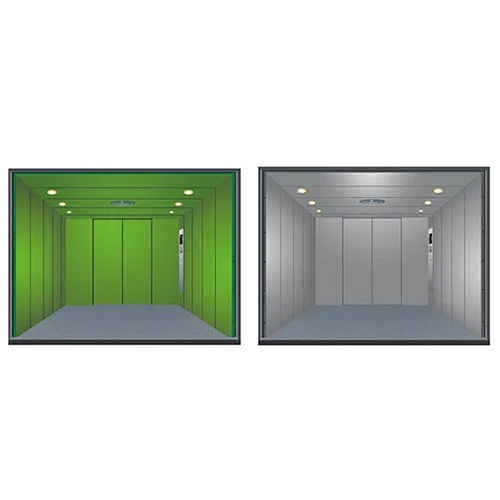

Freight elevator standard configuration
| 1.Car Design | ||
1 | Operating button | Push button with braille |
2 | Front wall | Painted steel plate |
3 | Car wall panel | Painted steel plate |
4 | Car flooring | Checked steel plate |
5 | Operating panel board | Hairline stainless steel |
| 5.1 | Operating display | Dot matrix display in red |
| 5.2 | Operating panel brand | Brand"User" |
| 6 | Car door | Painted steel plate |
| 7 | Ceiling | NO |
| 8 | Handrail | NO |
| 9 | Mirror | NO |
10 | Fans | YES(one) |
| 2.Landing Design | ||
Shaft door finish: | ||
1 | A: At ground floor | Painted steel plate |
| 2 | B: At typical floor | Painted steel plate |
| 3 | C: Hall horizontal indicator | NO |
| 4 | D: Door sill | Extruded hard aluminum |
| 5 | E: Sill(≤2T) | Stamped hard aluminum/stamped hard iron |
| 6 | F: Sill(≤3T) | Cast iron |
| Entrance jambs | ||
5 | A: At ground floor | Painted steel plate(narrow type) |
6 | B: At typical floor | Painted steel plate(narrow type) |
3.Hall push button | ||
| 1 | At ground floor | Hairline Stainless Steel |
| 2 | Other floors | Hairline Stainless Steel |
| 2 | Hall Operating button | Push button |

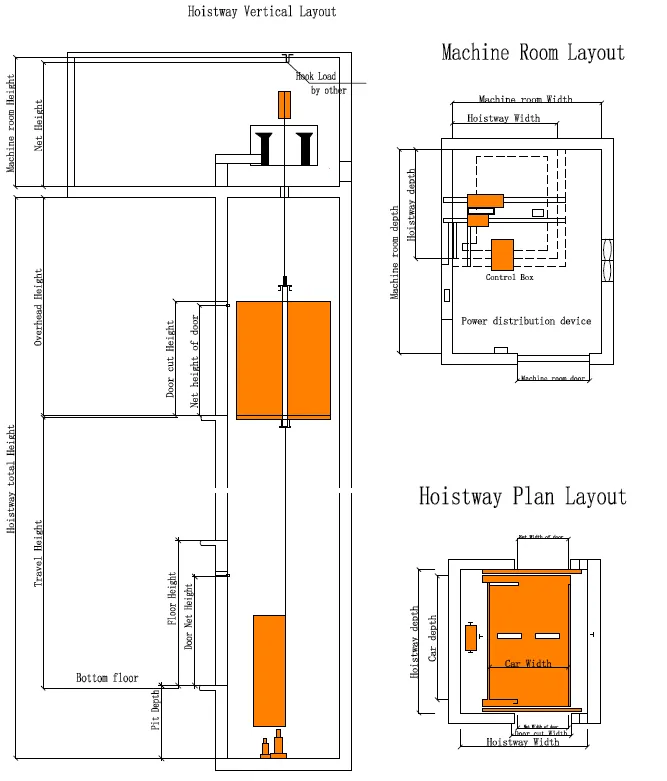

| NO | Rated capacity(kg.per.) | Speed(m/s) | Net size of car(mm) | Net door size(mm) | Net size hoisway(mm) |
| 1 | 630(8) | 0.5 | 1100*1500*2200 | 900*2100 | 2000*2100 |
| 2 | 1000(13) | 0.5 | 1300*1800*2200 | 1000*2100 | 2200*2400 |
| 3 | 1600(21) | 0.5 | 1600*2200*2200 | 1300*2100 | 2500*2800 |
| 4 | 2000 | 0.5 | 1600*2600*2200 | 1300*2100 | 2500*3200 |
| 1900*2200*2200 | 1500*2100 | 2800*2800 | |||
| 5 | 3000 | 0.5 | 2200*2700*2200 | 1800*2100 | 3300*3300 |
| 6 | 5000 | 0.25/0.5 | 2400*3600*2200 | 2000*2100 | 3800*4200 |
| 2800*3200*2200 | 2400*2400 | 3800*4200 | |||
| 7 | 6000 | 0.25/0.5 | 2600*4000*2500 | 2000*2400 | 4000*4600 |
| 8 | 8000 | 0.25/0.5 | 3000*4500*2500 | 2600*2400 | 4500*5100 |
