Hydraulic Lift
CNDD-030
FOB
Quantity
Main Information: Conai Hydraulic lift used in factory，shopping center，hotel，airport，bus station etc
hydraulic lift scissors lift,hydraulic lift,dump trailer hydraulic lift
elevator standard configuration
| 1.Car Design | ||
1 | Operating button | Push button with braille |
2 | Front wall | Hairline stainless steel |
3 | Car wall panel | Hairline stainless steel |
4 | Car flooring | PVC plastic floor PVC |
5 | Operating panel board | Hairline stainless steel |
| 5.1 | Operating display | Dot matrix display in red |
| 5.2 | Operating panel brand | Brand"User" |
| 6 | Car door | Hairline stainless steel |
| 7 | Ceiling | Mirror stainless steel frame,acrylic top panel |
| 8 | Handrail | NO |
| 9 | Mirror | NO |
10 | Fans | YES(one) |
| 2.Landing Design | ||
Shaft door finish: | ||
1 | A: At ground floor | Hairline stainless steel |
| 2 | B: At typical floor | Painted steel plate |
| 3 | C: Hall horizontal indicator | NO |
| 4 | D: Door sill | Extruded hard aluminum |
| Entrance jambs | ||
5 | A: At ground floor | Hairlin stainless steel(narrow type) |
6 | B: At typical floor | Painted steel plate(narrow type) |
3.Hall push button | ||
| 1 | At ground floor | Hairline Stainless Steel |
| 2 | Other floors | Hairline Stainless Steel |
| 2 | Hall Operating button | Push button |

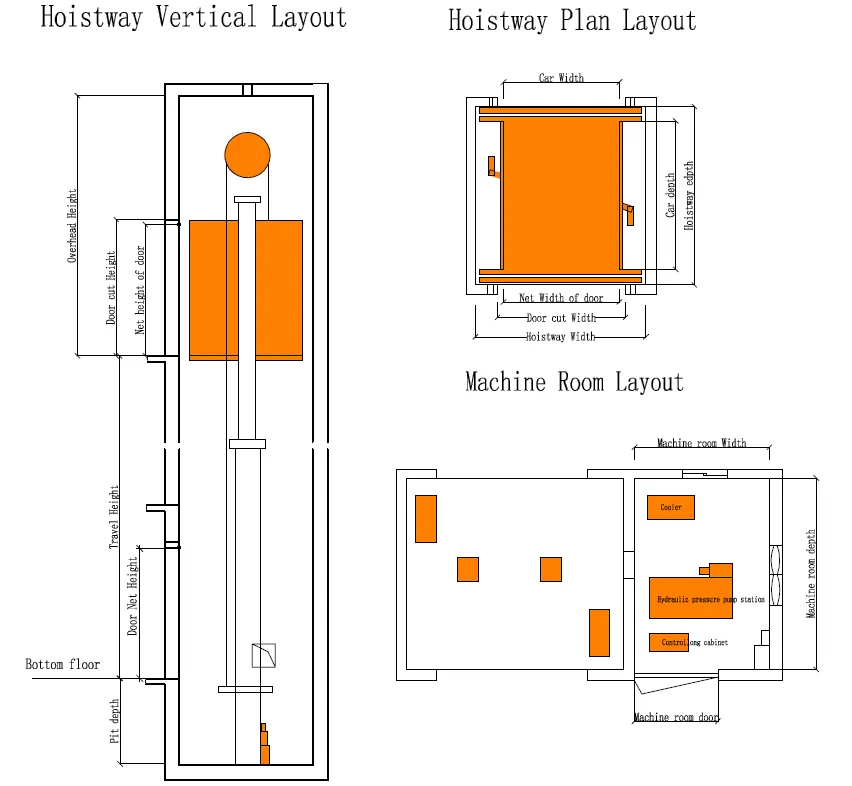

| NO | Vertical rise | Rated capacity(kg/per.) | Speed(m/s) | Net size of car(mm) | Net door size(mm) | Net size hoisway(mm) |
| 1 | ≤15m | 1000 | 0.5 | 1300*2300*2200 | 1100*2100 | 2500*2600 |
| 2 | ≤15m | 2000 | 0.5 | 1800*1800*2200 | 1500*2100 | 2800*3400 |
| 3 | ≤15m | 3000 | 0.25 | 2400*3000*2200 | 2000*2100 | 3700*3600 |
| 5 | ≤15m | 5000 | 0.25 | 2400*3800*2200 | 2000*2100 | 3700*4400 |
