Heavy Duty Escalator
CDTM/CDTF
Quantity
Outdoor Escalator escalator barnes noble brake escalator
Main Information: Designed with a powerful, massive structure in order to guarantee the safy and reliable.
Type: CDM
Step Width: 600mm/800mm/1000mm
Installation: Indoor/Ourdoor
Rated Speed: 0.5m/s～0.75m/s
Arrangement: Single/Parallel
Load Capacity: 9000 Persons/Hour
Horizontal Steps: 3/4 Steps
Certification: CE
Delivery Time: 25～45 Days
Original of Country: China
Configuration option
| Installation site | Indoor/Outdoor |
| Step width(mm) | 600/800/1000/1200/1400 |
Horizontal step | 2psc/3psc |
| Rise(mm) | ≤16m |
| Installation length(mm) | According to standard drwaing |
| Angle | 30° /35° |
| Motor power | 5.5KW/8KW/11KW/15KW/2*11KW/2*15KW |
| Start type | VVVF/Photocell/By key |
| Gear box brand | Siemens(Flender)Torin |
| Arrangement | Single/Parallel(Duplex) |
| Step material | Stainless steel/Aluminum |
| Step demarcation | With 2 sides demarcations |
| Logo on landing plate | Brand"User"/Conai |
| Comb lighting at both entrance(LED) | Yes/No |
| Skirting lighting LED | Yes/No |
| Handrail lighting LED | Yes/No |
VVVF/Frequency inverter | Yes/No |
| Outside cladding | No/Painted steel/S.S304/S.S430/S.S316 |
| Cladding thickenss | 1.0mm/1.2mm/1.5mm/2.0mm |

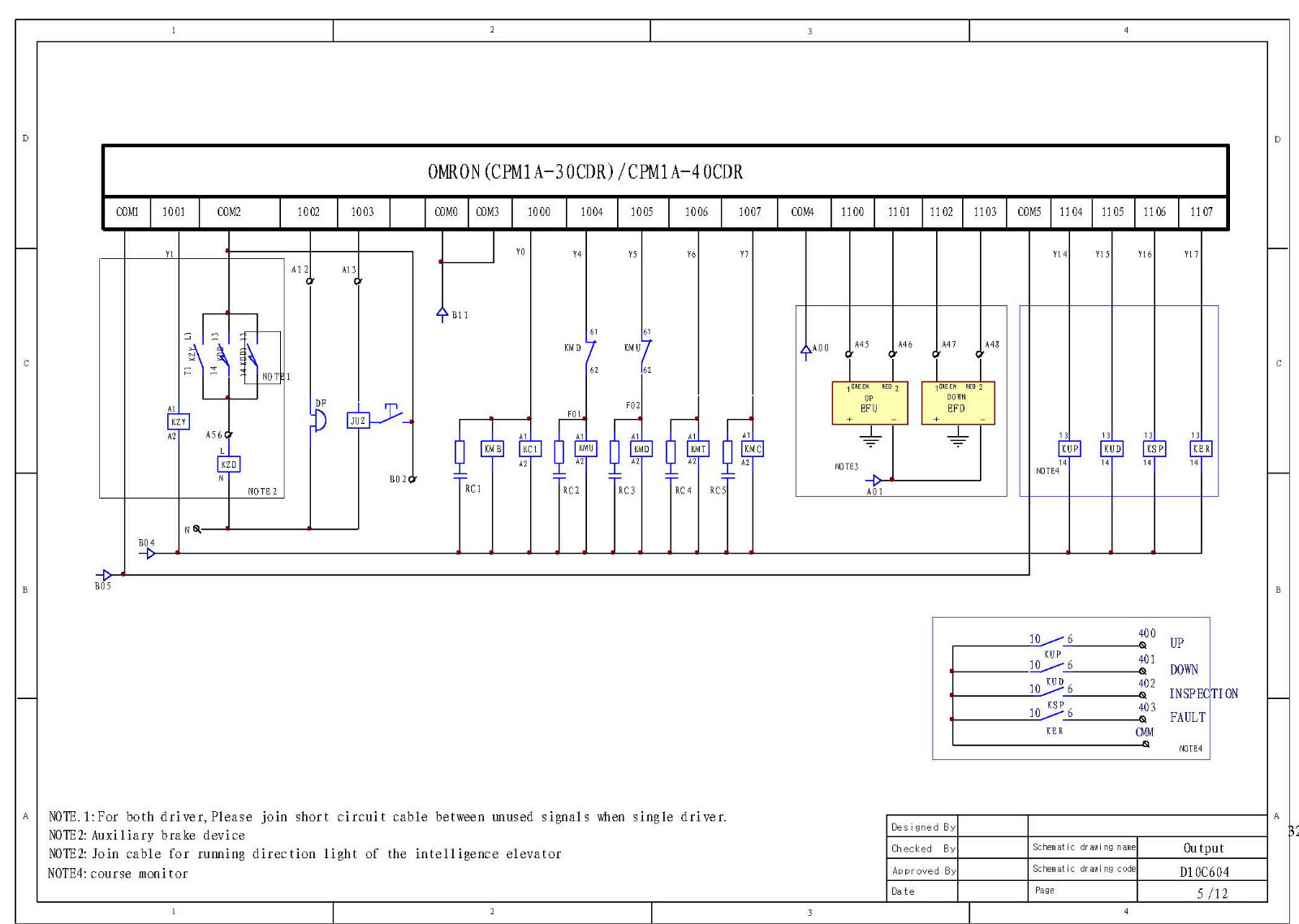

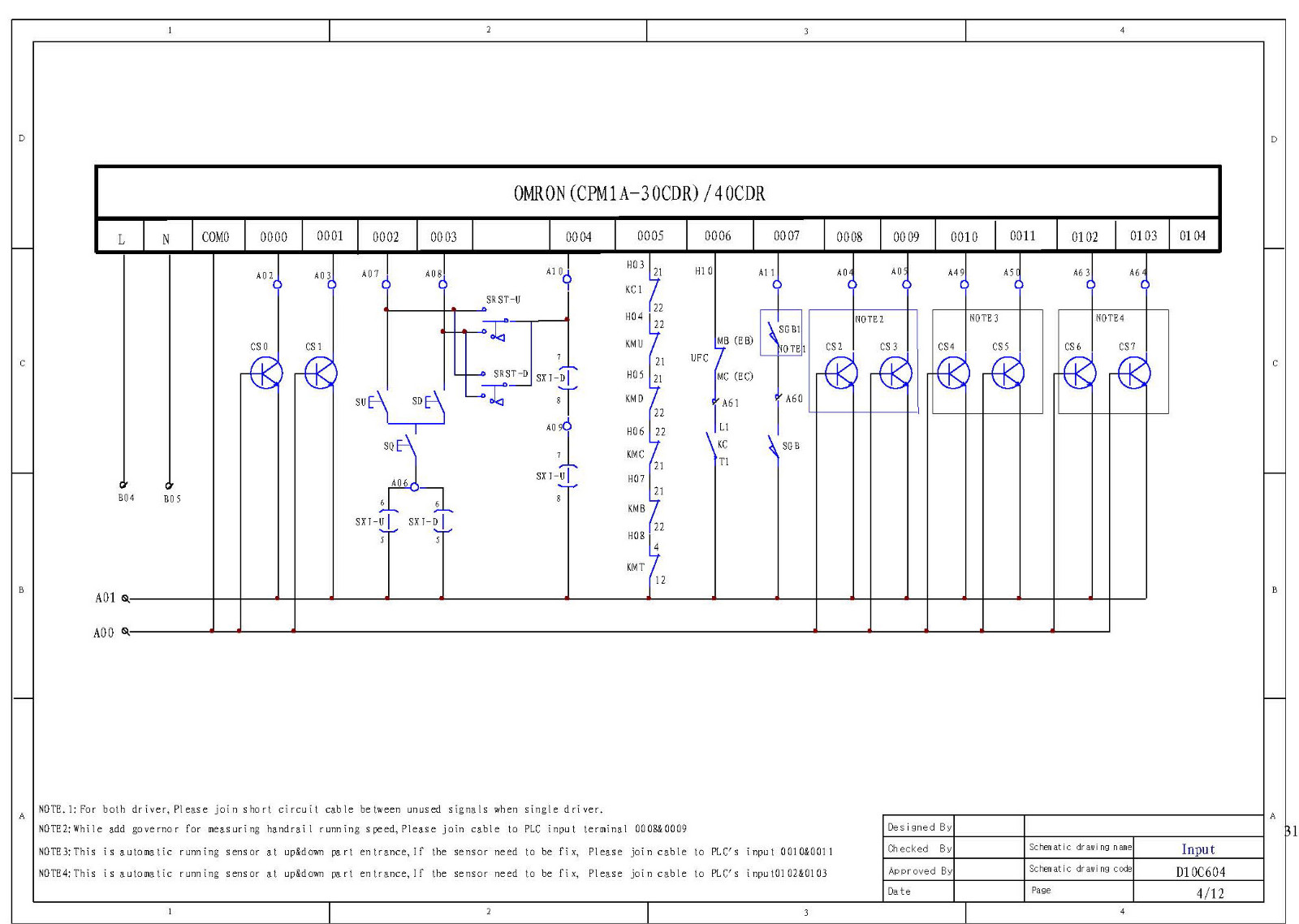

Construction sketch
