Slim Moving Walk
CDRM
Quantity
moving walkmoving side walk escalator moving walk elevator

Main Information: Designed with a slim, compact structure in order to reduce space and increase its flexibility.
Type: CDM
Step Width: 600mm/800mm/1000mm
Installation: Indoor/Ourdoor
Rated Speed: 0.5m/s～0.75m/s
Arrangement: Single/Parallel
Load Capacity: 9000 Persons/Hour
Horizontal Steps: 3/4 Steps
Certification: CE
Delivery Time: 25～45 Days
Original of Country: China

Configuration option

Installation siteIndoor
Pallet width(mm)800mm/1000mm

Pallet material

Stainless steel/Aluminum
Pallet demarcation2 sides/4 sides plastic or painted demarcation
RiseUp to 7m
Angle10° /11°/12°
Motor brandJIALI
Motor power5.5KW/8KW/11KW/15KW
Start typeBy key
Gear box brandTorin
ArrangementSingle/Parallel/Duplex
Logo on landing plateBrand“User”/Conai

Handrail colorBlue/Green/Grey/Red/Orange
VVVFYes/No
Direction indicatorYes/No

Automatic start/stop

Yes/No
Handrail illuminationYes/No
Comb lightingYes/No
Skirting panel lightingYes/No
Outside claddingPainted steel/SUS430/SUS304
Fault display storageYes/No

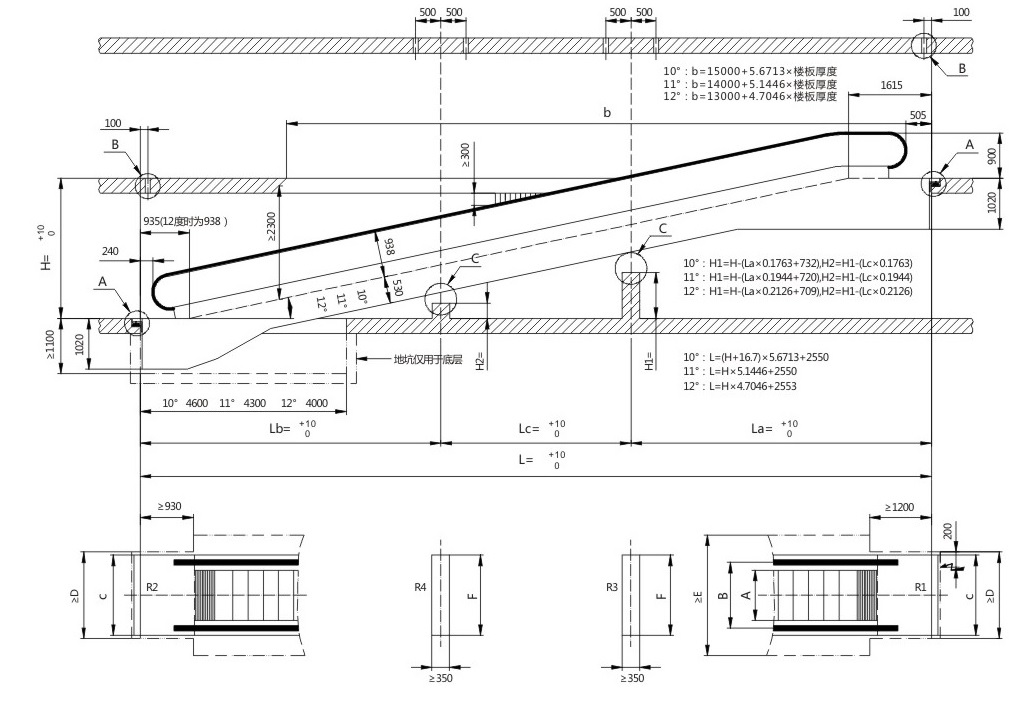

Construction sketch
