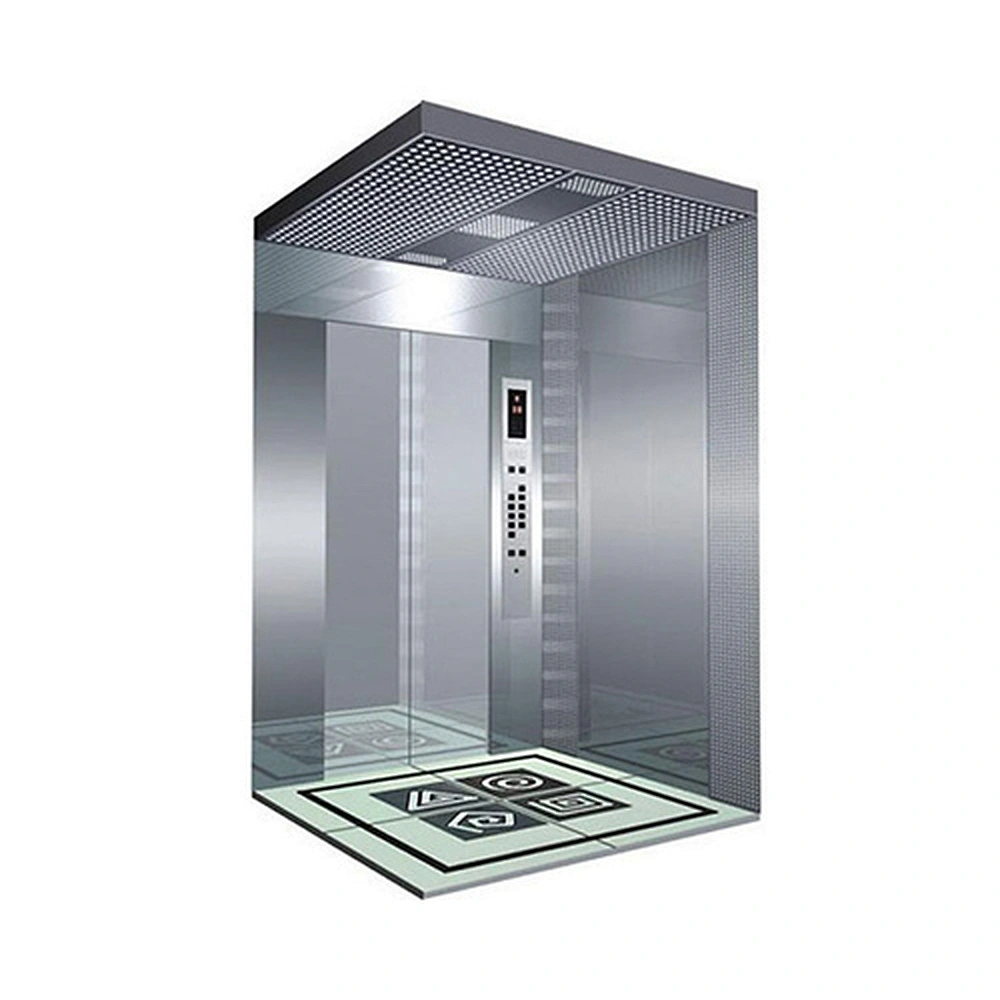

Small Machine Room Passenger Elevator
CNDD-001
FOB
Quantity
Main Information: Conai passenger elevator with advanced control technology , provide passengers safe and comfortable
small machine room elevator,machine roomless passenger elevator,lift elevator passenger elevator
Standard functions
| 1.Car Design | ||
1 | Operating button | Push button with braille |
2 | Front wall | Hairline stainless steel |
3 | Car wall panel | Hairline stainless steel |
4 | Car flooring | PVC plastic floor |
5 | Operating panel board | Hairline stainless steel |
| 5.1 | Operating display | Dot matrix display in red |
| 5.2 | Operating panel brand | Brand"User" |
| 6 | Car door | Hairline stainless steel |
| 7 | Ceiling | Mirror stainless steel frame,acrylic top panel |
| 8 | Handrail | NO |
| 9 | Mirror | NO |
| 10 | Fans | YES(one) |
| 2.Landing Design | ||
Shaft door finish: | ||
1 | A: At ground floor | Hairline stainless steel frame |
| 2 | B: At typical floor | Painted steel plate |
| 3 | C: Hall horizontal indicator | NO |
| 4 | D: Door sill | Extruded hard aluminum |
| Entrance jambs | ||
5 | A: At ground floor | Hairlin stainless steel(narrow type) |
6 | B: At typical floor | Painted steel plate(narrow type) |
3.Hall push button | ||
| 1 | At ground floor | Hairline Stainless Steel |
| 2 | Other floors | Hairline Stainless Steel |
| 2 | Hall Operating button | Push button |
| NO | Rated capacity(kg.per.) | Speed(m/s) | Net size of car(mm) | Net door size(mm) | Net size hoisway(mm) |
| 1 | 450(6) | 1.0 | 1200*1100*2400 | 800*2100 | 1800*1800 |
| 2 | 630(8) | 10 | 1400*1200*2400 | 800*2100 | 2000*1850 |
| 1.5/1.75 | |||||
| 3 | 800(10) | 1.0 | 1400*1400*2400 | 800*2100 | 2100*2050 |
| 1.5/1.75 | |||||
| 2.0 | |||||
| 4 | 1000(13) | 1.0 | 1600*1500*2400 | 900*2100 | 2200*2150 |
| 1.5/1.75 | |||||
| 2.0 | |||||
| 2.5 | 2300*2300 | ||||
| 3.0 | |||||
| 5 | 1250(16) | 1.0 | 1800*1500*2400 | 1000*2100 | 2400*2200 |
| 1.5/1.75 | |||||
| 2.0 | |||||
| 2.5 | 2500*2400 | ||||
| 3.0 | |||||
| 5 | 1600(21) | 1.0 | 2000*1700*2400 | 1100*2100 | 2600*2450 |
| 1.5/1.75 | |||||
| 2.0 | |||||
| 2.5 | 2000*1700*2400 | 1100*2100 | 2700*2600 |
